NexDie Industrial DDR3L EOL Replacement: 4Gb/8Gb Migration Guide

Bridging the Gap: Upgrading Legacy Industrial Systems with NexDie High-Performance DRAM

In the evolving landscape of industrial hardware, the obsolescence of legacy DRAM components poses a significant risk to system longevity. When legacy devices such as the Micron MT41K512M16TNA-125 IT and MT41K256M16HA-125 IT become difficult to source or face lifecycle changes, engineers must evaluate availability together with electrical, timing, package, temperature, and qualification requirements. For another 4Gb ×16 Micron DDR3L device, see our MT41K256M16TW 107 P replacement guide.For engineers evaluating another 4Gb ×16 Micron DDR3L device, see our [MT41K256M16TW 107 P replacement guide]

NexDie’s PRB4G1646D and PRB8G1646D are 4Gb and 8Gb DDR3/DDR3L devices that may be evaluated as potential alternatives for selected legacy configurations. Compatibility must be verified against the original device specifications and the target system requirements.

1. Engineering the Migration: Technical Compatibility

The challenge of replacing legacy DRAM lies in maintaining the delicate balance of signal integrity and timing.

For an overview of available 4Gb and 8Gb devices, visit our Wide Temperature DDR3L product page.

• JEDEC Compliance & Pin-to-Pin Integration: Package and Interface Review: PRB4G1646D and PRB8G1646D use a 96-ball FBGA package and support DDR3/DDR3L applications. Before selecting either device as an alternative, engineers should compare the original and candidate datasheets, including voltage, timing, package dimensions, ball assignment, controller compatibility, and system qualification requirements.

• Voltage Versatility: Operating Voltage Review: PRB4G1646D and PRB8G1646D support DDR3/DDR3L voltage requirements. Engineers should confirm the operating voltage, electrical characteristics, and memory-controller requirements against the original device datasheet before qualification.

2. Overcoming Thermal Constraints: The 105°C Advantage

Operating-temperature ratings vary by manufacturer, device family, and ordering code. In compact industrial cabinets and edge-computing equipment, actual component temperature can also be affected by enclosure design, airflow, workload, and nearby heat sources.

• Operating Temperature Range: NexDie PRB4G1646D and PRB8G1646D are specified for operation from -40°C to +105°C. Engineers should confirm temperature definitions, test conditions, cooling design, and the target system’s operating requirements during qualification.

• Thermal Design Considerations:Thermal Design Considerations: A wider specified temperature range may provide additional design flexibility for industrial equipment. Actual system performance still depends on PCB layout, airflow, enclosure conditions, workload, and complete system-level validation.

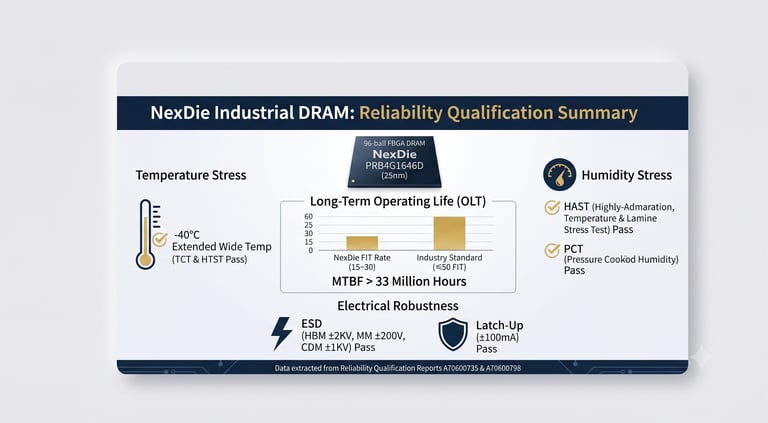

3. Reliability Qualification Data

Engineering decisions require data-driven verification. Reliability qualification reports for PRB4G1646D and PRB8G1646D provide test data for engineering review. These results should be considered together with the product datasheets, application conditions, and the customer’s own system-level qualification.

• Operating Life Testing: The qualification reports include Operating Life Test (OLT) data under accelerated stress conditions. The 125°C test condition is a reliability-test condition and does not represent the product’s specified operating-temperature range. Engineers should review the complete report, test duration, sample size, and acceptance criteria.

• Environmental Test Review: The qualification reports include results from environmental tests such as HAST (Highly Accelerated Temperature and Humidity Stress Test) and Temperature Cycling (TCT). Engineers should review the stated test conditions, sample quantities, duration, and acceptance criteria when assessing suitability for a specific application.

• ESD and Latch-Up Testing: The qualification reports include ESD and latch-up test results under specified laboratory conditions. These component-level results should be reviewed together with the target system’s electrical design, protection measures, and qualification requirements.

4. Density Migration Strategy

PRB4G1646D and PRB8G1646D provide 4Gb and 8Gb density options. Moving from a 1Gb or 2Gb device to a higher-density device should be treated as a system redesign or migration assessment rather than a direct replacement.

Engineers should verify memory-controller capacity, address-bus topology, device organization, voltage, timing, package and ball assignment, firmware support, and total memory configuration. Samples should be validated in the target hardware before production approval.

To review NexDie memory densities and device configurations, see our Industrial DRAM product overview. For an 8Gb ×16 DDR3L reference, review our MT41K512M16VRP-107 IT:P guide.

Conclusion

As legacy DDR3/DDR3L components become more difficult to source, NexDie supports the evaluation of memory options for long-life industrial systems. Engineers and procurement teams may use cross-reference information as a starting point, while final device selection should be confirmed through datasheet comparison, sample testing, and system-level qualification.

For technical specifications, reliability data, or comprehensive cross-reference assistance, please contact our team at sales@wtddr34.com or visit wtddr34.com

Technical references: Reliability Qualification Report PRB4G1646D, Reliability Qualification Report PRB8G1646D.For technical specifications, reliability data, cross-reference assistance, or sample evaluation, contact our team at sales@wtddr34.com or visit our Sample & Buy page.
